10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface

  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
  • 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface
Lugar de origem China
Marca HuaXin
Certificação ISO14001/ISO9001/IATF16949
Número do modelo HX101WU001A
Quantidade de ordem mínima 1000
Preço Negociável
Detalhes da embalagem bolha+caixa de espuma+bolsa de bolha+dentro da caixa+caixa mestre
Tempo de entrega 6 semanas ~ 8 semanas
Termos de pagamento T/T
Habilidade da fonte 100 mil por mês.
Detalhes do produto
Tecnologia de exibição IPS TFT Nome Módulo LCD TFT
Tamanho 10,1" Resolução 1920RGBX1200
Dirigindo IC ---- Ângulo de visão TODOS os 0' relógio
Interface LVDS duplo
Destacar

10.1 inch TFT LCD Module

,

1920RGBx1200 resolution IPS TFT Display

,

Dual LVDS Interface LCD Screen
Deixe um recado
Descrição de produto

10.1 inch IPS TFT LCD Module, 1920RGBx1200 high-resolution , Dual LVDS Interface,1000 brightness, 40LEDS
Product Specifications
Part NO.  HX101WU001A
Display Technology IPS TFT LCD
Diagonal Screen Size 10.1inch
Active Area (mm) 216.81(H)X135.5(V)
Panel size(mm) 228.66(H)X148.30(V)X4.5(T)
Brightness(cd/m2) 1000
Resolution  1920RGBX1200
Interface Dual LVDS
View angle ALL o'clock
Driving IC   ---

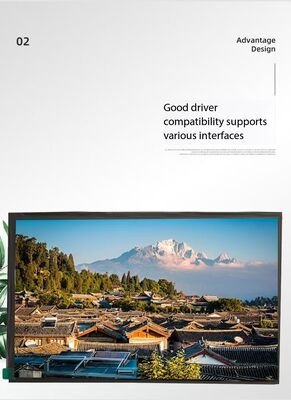

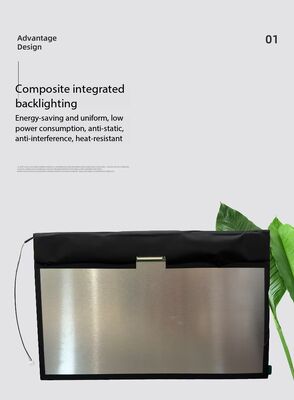

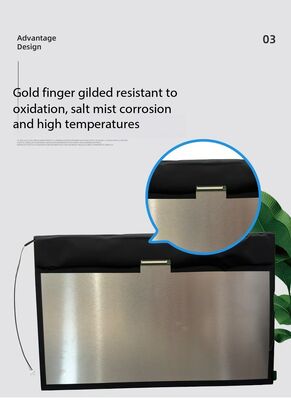

Product Picture


 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 010.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 110.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 2
 10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 310.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 410.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 5

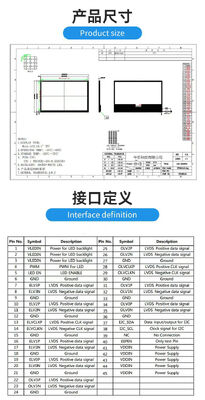

Technical Drawing


10.1 inch IPS TFT LCD Module with 1920RGBx1200 Resolution and Dual LVDS Interface 6


TFT Technology Overview
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
