1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness

  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
Lugar de origem CHINA
Marca HuaXin
Certificação ISO14001/ISO9001/IATF16949
Número do modelo HX0136Y002
Documento HX0136Y002-spec.pdf
Quantidade de ordem mínima 1000
Preço Negociável
Detalhes da embalagem bolha+caixa de espuma+bolsa de bolha+dentro da caixa+caixa mestre
Tempo de entrega 6 semanas ~ 8 semanas
Termos de pagamento T/T.
Habilidade da fonte 100 mil por mês.

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Exibir tecnologia Painel TFT LCD Nome Módulo redondo de TFT
Tamanho 1,36 " Resolução 360x360
Drive IC GC9C01 Ver ângulo ângulo de visão livre
Interface Qspi
Deixe um recado
Descrição de produto

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness


A: Product Parameter

Part No: HX0136Y002
display Mode 1.36 inch round TFT Display
outline size(mm) 35.88(H) ×38.44(V)×1.6(T)
AA size(mm) 33.48*33.48
Display dots 360X360
view Angle ALL
Brightness 400C/D
interface QSPI
Driving IC GC9C01

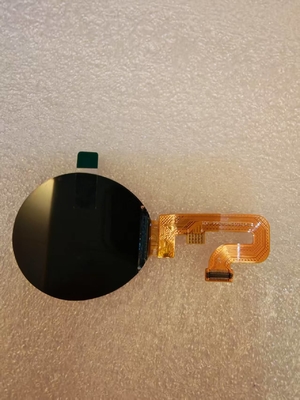

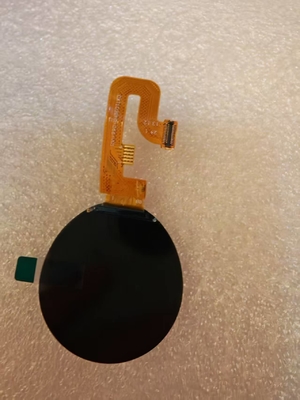

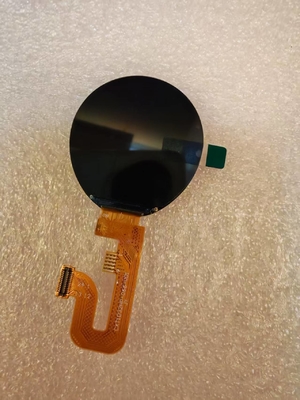

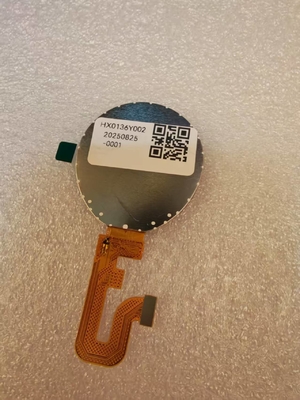

B:Product Picture

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 0

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 1

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 2

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 3

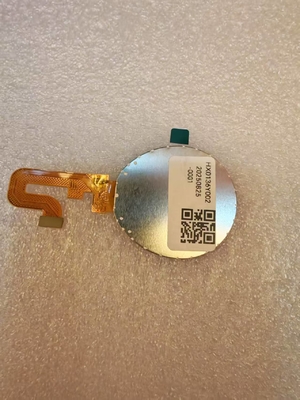

 C: Drawing

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 4



 D:TFT Product  Knowledge


tft substrate input and CF substrate input flow chart as below


1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 5


TFT structure  as below

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
